UFI BOX – INDIAN VERSION

UFi Box Features
UFi Box is a powerful EMMC Service Tool that can Read EMMC user data, as well as repair, resize, format, erase, read write and update the firmware on EMMC in Samsung, china phone SK Hynix, Toshiba, Kingston, micron, and other brands.

Note: This India version ufi box only work in India..

UFi Box is a tool to repair phones with the ability to:

Repair EMMC
Resize EMMC
Format EMMC
Write full data, erase full
Read boot1
Read boot2
Read ext CSD
Read User Data
Update firmware
Via test point

What are the advantages of UFi Box?

Has its own software, a stand-alone
Display that is easily understood by the user or newbie first technical advance that has been made as easy as possible usage Or ONE CLICK without having configurations app.
Supported database of various kinds of IC EMMC, which in included in the software Ufi box
Support Ic EMMC Samsung and china phone SK Hynix, Toshiba, Kingston, micron, and other brands
Has a faster speed compared to other boxes because it uses an interface 8bit full speed
Support the use, installation and use in support by practitioners directly

Hardware Features:

USB 2.0 High-Speed(480 Mbps)
Modern design, with built-in LDO Voltage Out and external power source
Secured with Java smart card and online system
Multiprotocol ready, with 20 (13 usable) multi-purpose IO pins and 1 Full-Speed USB-HOST
Integrated software managed over-current protection

Software Features:

Lowest-cost universal software platform in the market
Work with standalone and user-friendly software
Strong and secure software platform integrated with online(server based) security
Planned to support as many as possible up-to-date repair solution
Integrated file synchronising function

Compatibility

What are the supported OSes?

UFI software developed inside Windows 7 64bit environment, but it can work with All other Windows version starting Windows XP.

However, we recommend to use the software with Windows 7 or later.

We have tested the software and drivers to be working with the following OSes:

Windows XP Service Pack 3 (32bit)
Windows 7 Home (32bit)
Windows 7 Ultimate (32bit)
Windows 7 Ultimate (64bit)
Windows 8 Profesional (64bit)
Windows 8.1 Profesional (64bit)
Windows 10 Final (64bit)

Warranty

All the hardware was passed the QC in the factory before dispatch, however, some devices may have problems in the customer’s hand.

UFi Box, UFI-Lite and the eMMC Socket were covered by 6-months limited warranty.

This warranty does not include problems that were caused by the user himself, such as water damage, burns because of over-voltage, etc.

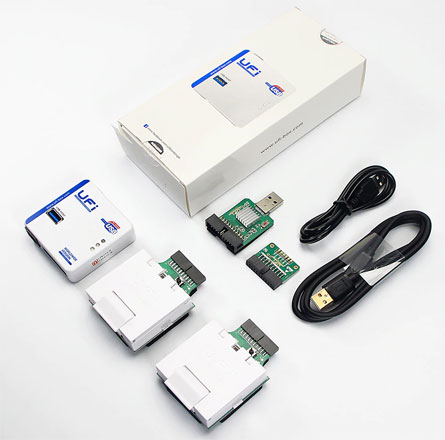

Package include:
1 x UFI Box – India Version
1 x UFI-Lite USB3.0 SuperSpeed uSD/eMMC Reader
1 x 2 In 1 eMMC/eMCP socket (169-FBGA,153-FBGA,162-FBGA,186-FBGA)
1 x BGA221 / BGA254 2in1 eMMC/eMCP socket
1 x UFI ISP Adapter V2
1 x USB Data Cable
1 x USB to DC 5V External Power cable
2 x Sponge pad(use for replacement 2 In 1 eMMC/eMCP socket and eMMC/eMCP socket one)
